AG-TX28161502 Electronic Turnstile Gate Manufacturer Flap Barrier Turnstile Gate Use Access Control for Library
Product Video, please find in this youtube link: https://youtu.be/j_j--7dJ3fE
Product Description

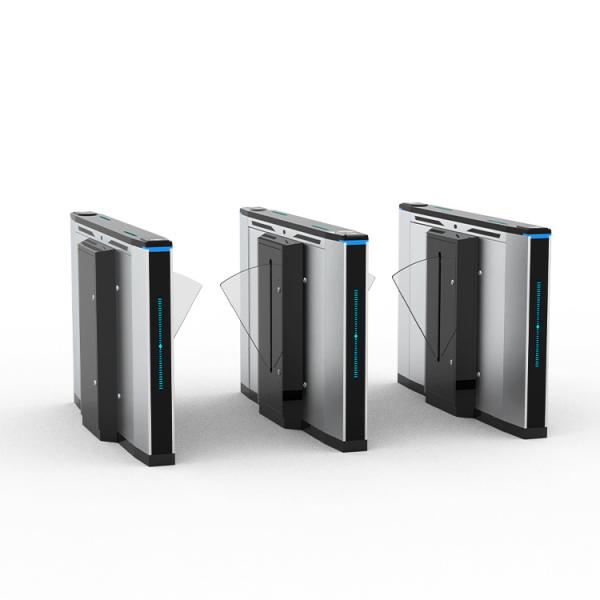

One of HPT Technologies' most cutting-edge and striking products is the Sirius turnstile gate. Model AG-TX28161502 of this series is a high-end flap barrier gate. In comparison to conventional flap barrier turnstiles, the HPT Sirius flap barrier gate has a longer, thinner body, giving it a more delicate and modern appearance. The inclusion of vivid LEDs in the flap barrier gate turnstile enhances its aesthetic appeal both during the day and at night and provides a clear status signal. The surface of the turnstile gate has a variety of distinctive color schemes, which makes the design more difficult. It is exquisite, cutting-edge, and creative.
Specification
| Product Size | 1600*300*980mm |
| Material | SUS 304 stainless steel |
| Thickness | Top:1.2mm+body1.2mm |
| Passage Direction | Single directional/Bi-directional |
| Standard Channel Width | 550mm |
| Sensor | 4 pairs of active infrared intrusion detector |
| Throughput Rate | 30~35p/m |
| Reaction Time | 0.2S |
| Driving Voltage | DC24V 4.2A |
| Working Temperature | ·-20~+70℃ |
| Power Input | AC110~220V±10% |
| Motor | Brushless DC Motor |
| Mechanism | Full Height Flap Gate Mechanism |
| Back up power | Supercapacitor(12V/3A) |
| Acoustic Alarm | Buzzer Alarm |
| LED | Triple Color LED |
Functionality
1. The flap barrier gate does a fault self-check when it is triggered; if any issues are discovered, a warning siren is released.
2. The operational condition of the flap gate can be predetermined at the main control panel.
3. It has a stop-pinching feature. The gate will automatically reopen if the turnstile arms come into contact with something as they are about to close, protecting both passengers and the gate itself.
4. There is an audible and visible alarm on the flap barrier turnstile gate. The gate's LED is blue when it is in standby mode. It glows green when someone walks through it. It glows red when someone tries to enter the gate passageway without authorization. The buzzer in the gate beeps to notify persons of the authorization violation.
5. The gate also has "Anti-Collision" technology, which enables the driving motor to stop and try to save itself if something slams into it too forcefully.
6. Turnstile data is synced over a number of channels.
7. The system will automatically revoke the visitor's access permission if they do not pass within the specified period, and it will by default return to the "waiting for open" status after 6 seconds. The "waiting duration" parameter lets users choose how long they want to wait until the gate reopens.
8. The turnstile will automatically open and close each time the power is turned on and off.
9. It can be connected to many readers, such as RFID, fingerprint, and facial recognition readers.
10. A pathway may be either one-way or two-way to regulate access for entry and exit.
Customization Available
To make our gate more suitable for your projects, we can also do different settings for the gate or change the gate design for different scenarios. You are always welcome to communicate with our sales team.
